Pulp Cup Forming Machine

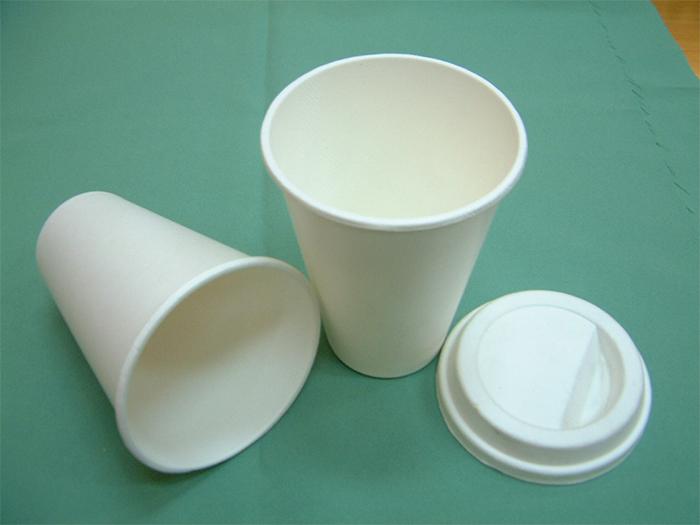

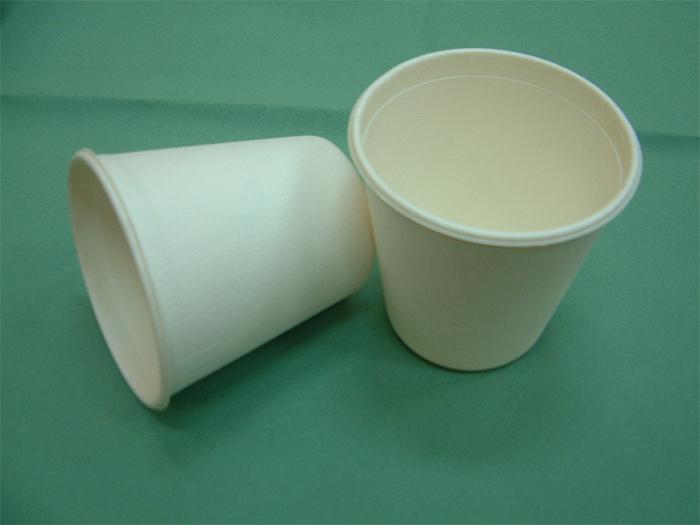

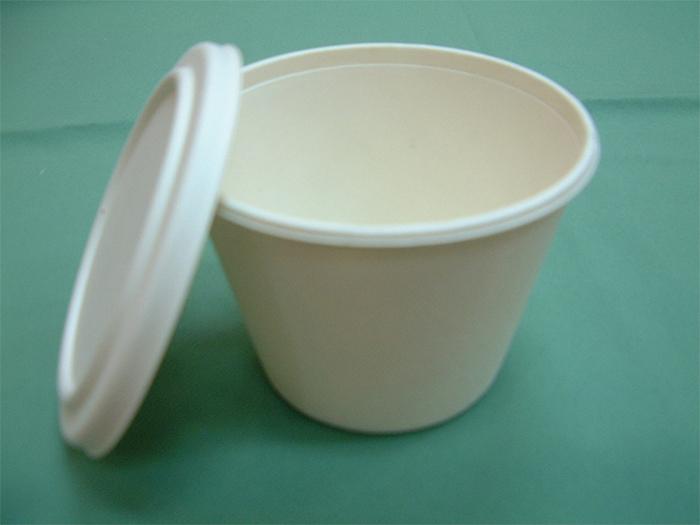

Pulp cup forming machine takes plant pulp including bagasse pulp, bamboo pulp, wheat straw pulp, reed pulp as its primary raw material, produces disposable eco-friendly cups. Cups can be microwaved and refrigerated.


We offer 6 configurations. Our machine can produce different pulp products with different molds. Please click to learn about these models.

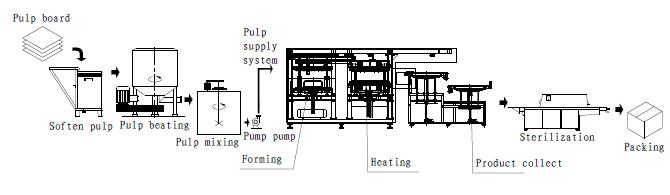

Manufacturing Process Detail
1. Pulping process takes soaked paper pulp boards and mixes them into pulp. Paper boards are mixed by hydraulic pulper and taken into pulp mixing pool. After adding eatable waterproof, oil proof additives, they are taken into pulp feeding pool.
2. Pulps are slip casted, stirred evenly with water and then dehydrated. Formed product and then moved to solidifying mold for further dehydration.
3. Formed products are transported to drying mold by negative pressure.
4. No further trimming process is needed after heating. Products can be directly sterilized and packaged.

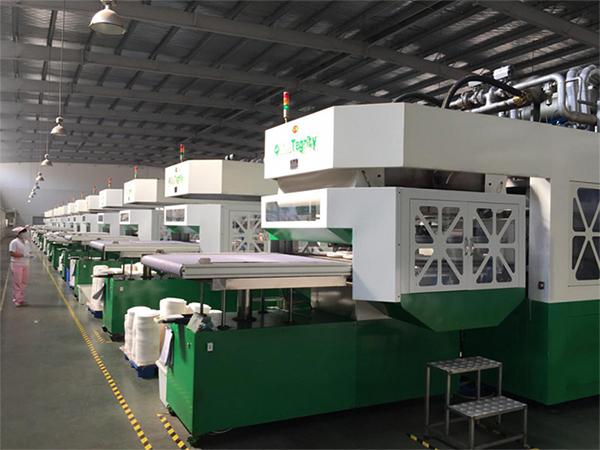

The production line consists of an automatic pulp molding machine, a forming pool, a trim-free unit, hydraulic solidifying drying unit, an optic fiber alarming unit, a transferring unit, a collecting unit, a hydraulic unit, and a PLC control system.
